Connecting the Peltier device and mounting of the electronic camera-print
On the back-side of the alu-heatsink, i have mounted 2 Pertinax spacers for mounting the electronic print on the heatsink. With a flat-cable, i have made the connection from the Tulip-connectors to the electronic print

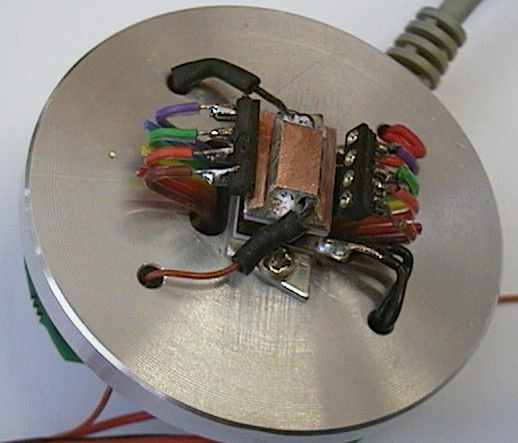

View of the front of the heatsink with Peltier device and CCD-chip with all the electrical connections

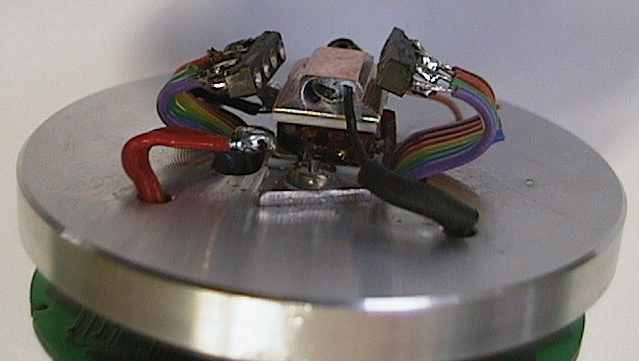

View of the heatsink. On the top electrical connectors (Tulip) with flatcable. the peltier device.
